The CNC spinning machine for automobile wheel hubs is an advanced equipment specially used for high-precision forming of automobile wheel hubs. It combines the advantages of CNC technology and spinning process to bring efficient, accurate and reliable solutions to the production of automobile wheel hubs.

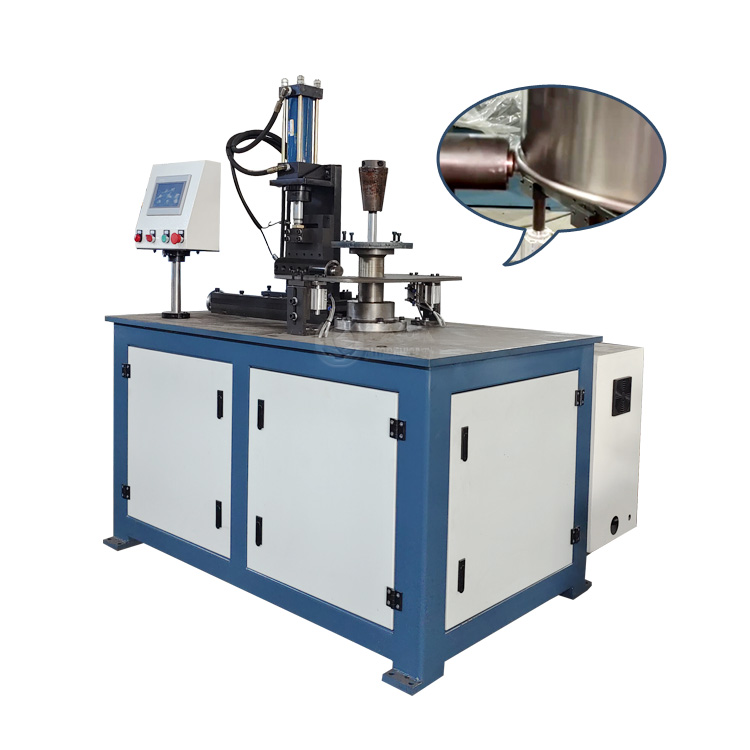

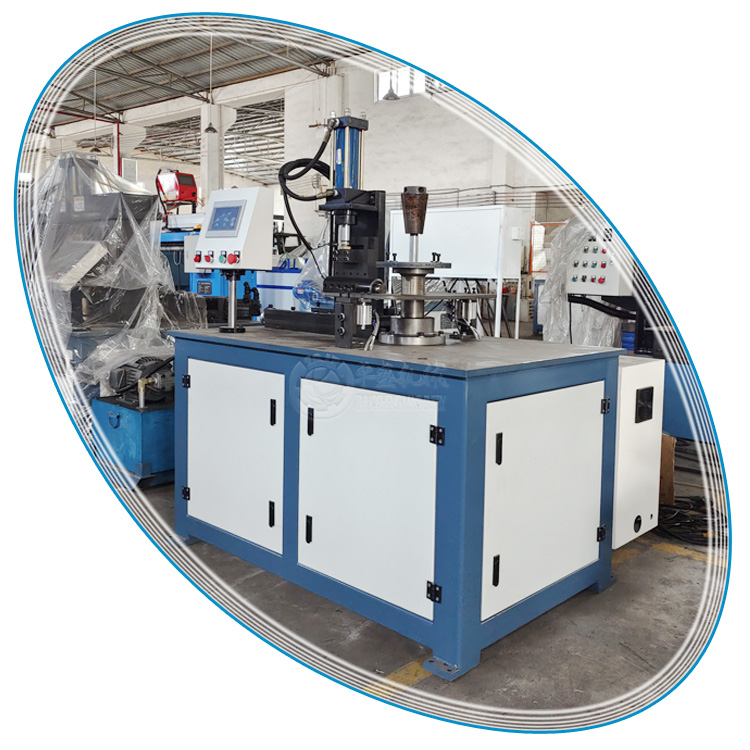

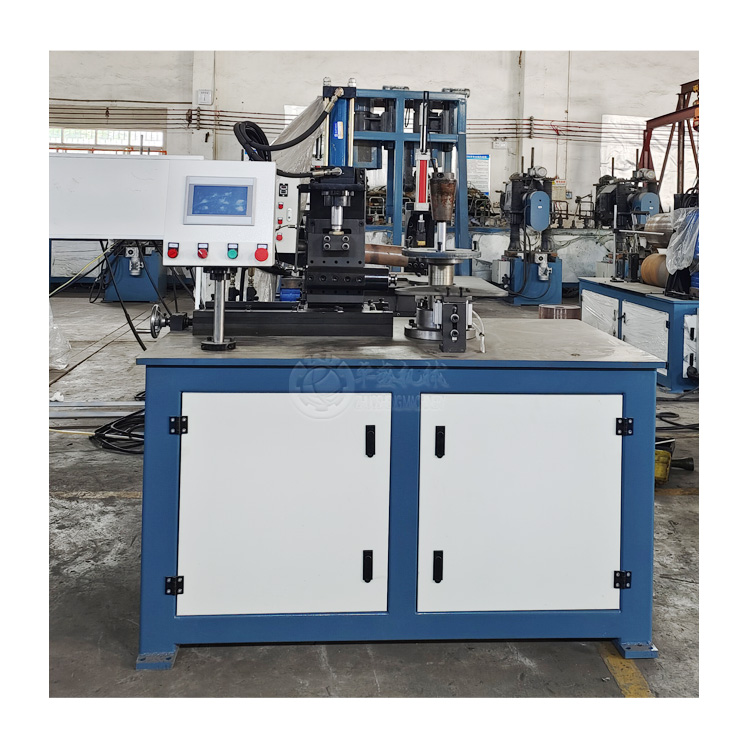

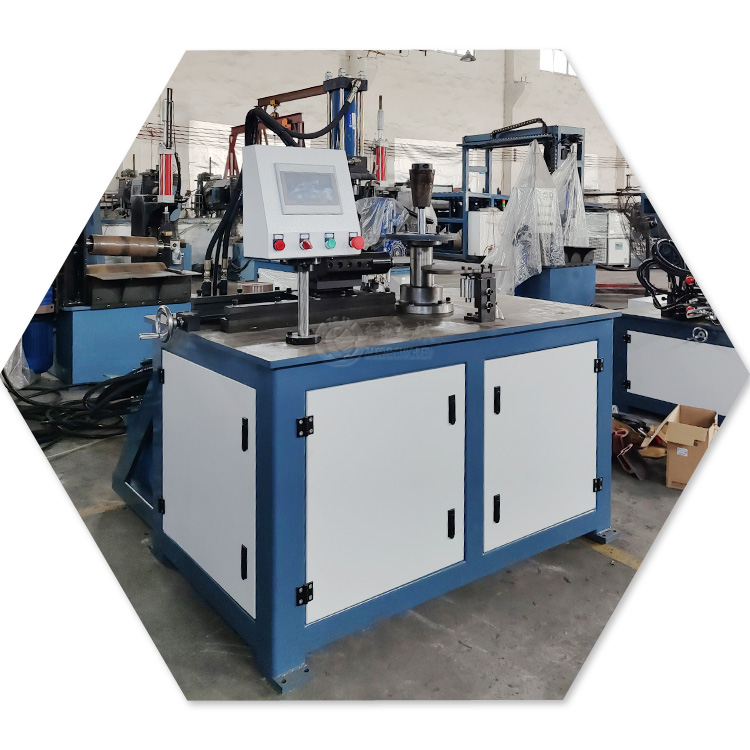

The metal cylinder curling machine usually has a solid body structure to ensure stability during processing. It is mainly composed of the following parts:
Frame: Provide support for the entire equipment to ensure that it will not shake during operation.
Curling mechanism: This is the core component responsible for curling the metal cylinder. Usually includes curling wheels, pressure wheels, etc., through precise movement and pressure control, to achieve high-quality curling effect.
Drive system: Provide power to enable the curling mechanism to operate normally. It can be driven by a motor, or it may be driven by hydraulic or pneumatic means to meet different processing requirements.
Control system: Used to control the operating parameters of the curling machine, such as curling speed, pressure, etc. It can be a simple mechanical control or an advanced electronic control system, which is convenient for operators to make precise adjustments.
1. High efficiency: can quickly and accurately complete the curling of metal cylinders, improve production efficiency.
2. High precision: Through the precise control system, high-quality curling effect can be achieved, and the curling size is uniform and firm.
3. Strong adaptability: It can adapt to the processing of metal cylinders of different diameters and thicknesses to meet the needs of different customers.
4. Easy operation: The operation of the equipment is relatively simple. After a certain amount of training, the operator can easily get started.
5. High reliability: The use of high-quality materials and advanced manufacturing technology ensures the stability and reliability of the equipment and reduces maintenance costs.
| Origin: | Guangdong, China |
| Machine type: | cold forging machine |
| Weight (KG): | 1200 |
| Video factory inspection: | provided |
| Mechanical test report: | provided |
| Sales type: | general products |
| Core component warranty: | 1 year |
| Core components: | PLC, engine, bearing, gearbox, motor, gear, pump |
| Warranty: | 1 year |
| Main selling point: | easy operation |
| Applicable industries: | building materials stores, machinery repair shops, manufacturing plants, other, ventilation equipment manufacturers |
| Showroom location: | none |
| Brand: | Zhuosheng |
| Condition: | brand new |
| Power type: | AC 380V three-phase four-wire 50-60Hz |
| Equipment power: | 10.5kw |
| Equipment specifications: | 1800x1200x1800 (mm) |
| Workpiece diameter: | 150-800 (mm) |
| Thickness of workpiece: | 0.6-3 (mm) |
| Control method: | PLC touch screen |
| Scope of application: | cylindrical hardware sheet metal processing |
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.
Metal cylinder curling machines are widely used in the following fields:
1. Packaging industry: used to make curling of metal packaging cans, barrels and other containers to ensure the sealing and strength of the containers.
2. Automobile manufacturing: In the production of automobile parts, such as exhaust pipes, fuel tanks, etc., metal cylinder curling machines can perform curling on metal parts to improve product quality and reliability.
3. Metal product processing: suitable for the production of various metal products, such as ventilation ducts, metal crafts, etc., through curling processing can increase the beauty and practicality of the product.
The working principle of the metal cylinder curling machine is to use the curling mechanism to curl the edge of the metal cylinder. First, place the metal cylinder to be processed in a suitable position, and then start the equipment. The drive system drives the curling mechanism to move, and the curling wheel and pressure wheel and other components apply pressure and rotational force to the edge of the cylinder, so that the metal edge gradually curls into the desired shape. During the whole process, the control system can adjust the curling speed, pressure and other parameters as needed to ensure the stability and consistency of the curling quality.
We are grateful for your support and trust along the way. We are honored by your cooperation every time, and we will live up to your trust and provide you with a more excellent experience.
We can also help you with all your equipment packaging needs. Whether you need split packaging, certified materials or general packaging advice, our team of experts can help you. We understand that every business is different, so we tailor our services to your needs. Our goal is to make your life easier by meeting all your packaging needs so that you can focus on running your business.
As a professional mechanical equipment manufacturer, our company is a private technology innovation enterprise integrating independent research and development, design and manufacturing, installation and commissioning, and training.
Our R&D team has 10 people, whose members cover multiple professional fields such as mechanical engineering, electronic information, and materials science, and have the ability to deal with different technical problems.
Our equipment is widely used in aerospace, energy, ventilation,hardware and furniture, tableware, medicine, electricity, packaging,construction,automobile and other industries and fields.
Q: When shipping, what kind of packing?
A: We use standard export packing.
Q: What are your delivery terms?
A: EXW, FOB, CFR, CIF.
Q: What's your delivery time?
A: Generally speaking, it takes 30 to 60 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q: Can you make it as required?
A: Yes, we can produce according to your samples or technical drawings. We can make molds and fixtures.
Q: Do you have professional engineers?
A: Yes.we have professional engineers and designers.
Q: Can you provide customzied machines?
A:Yes, we can design and manufacture according to your specific requirements.
