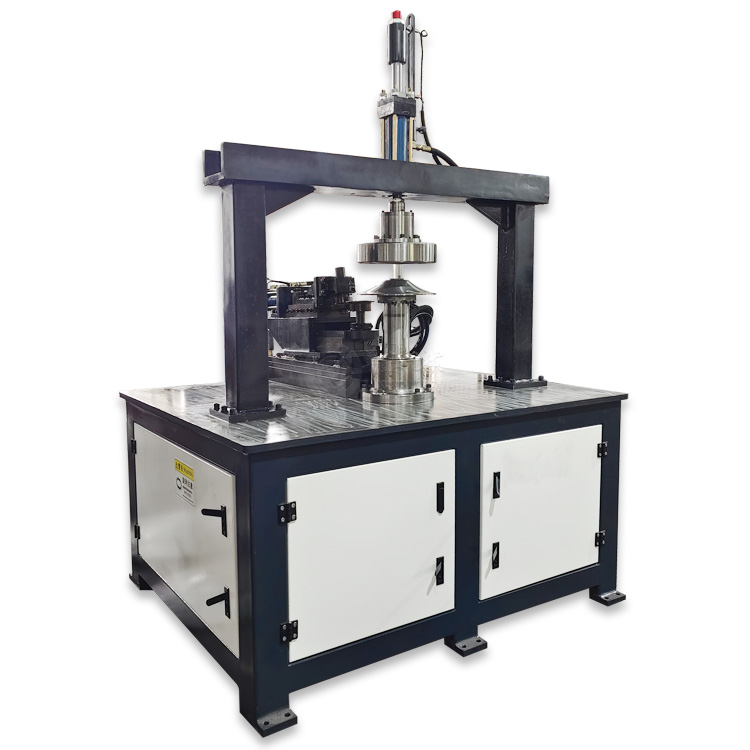

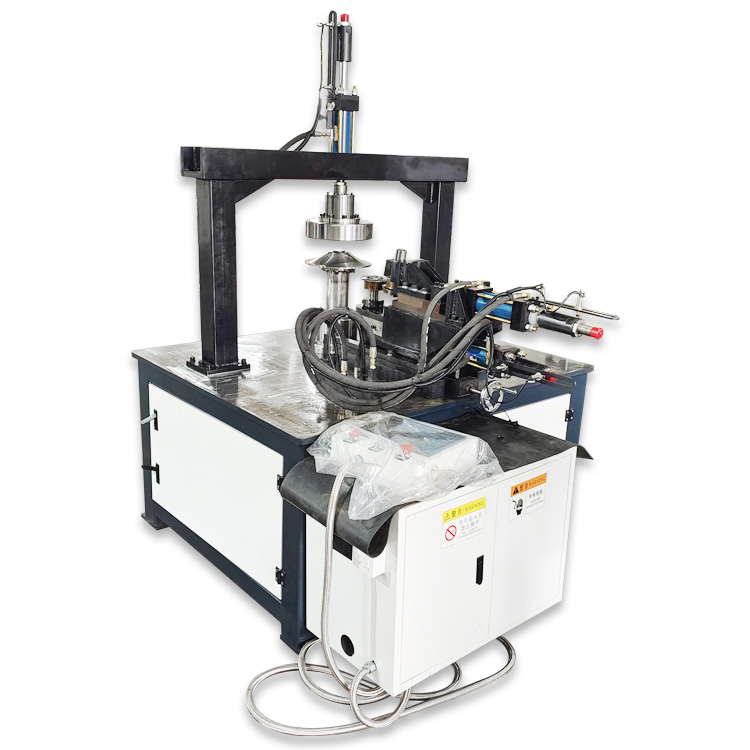

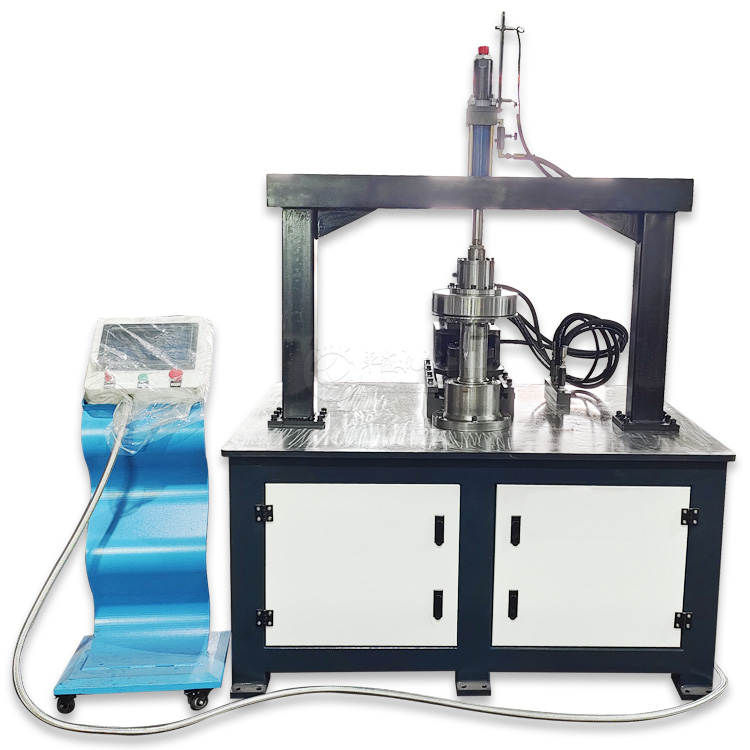

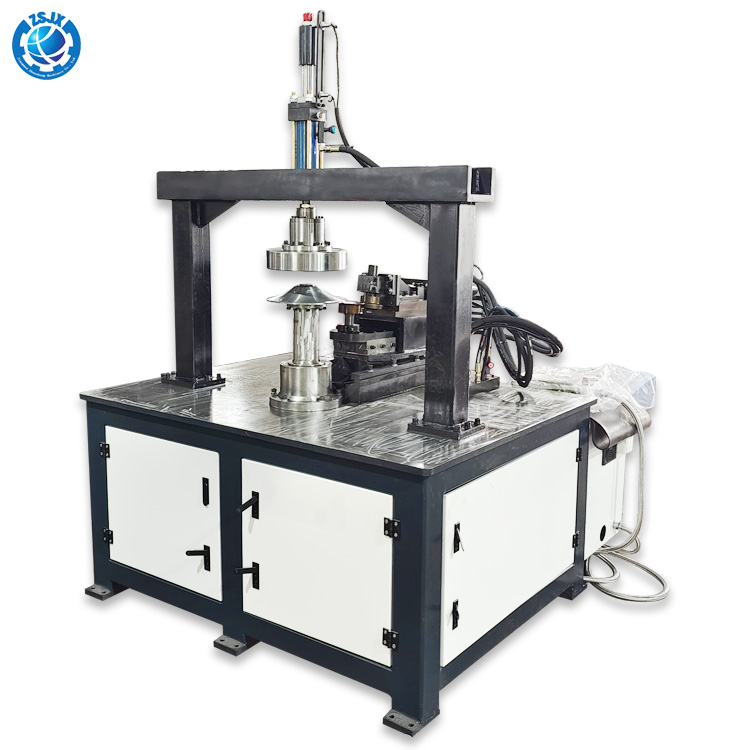

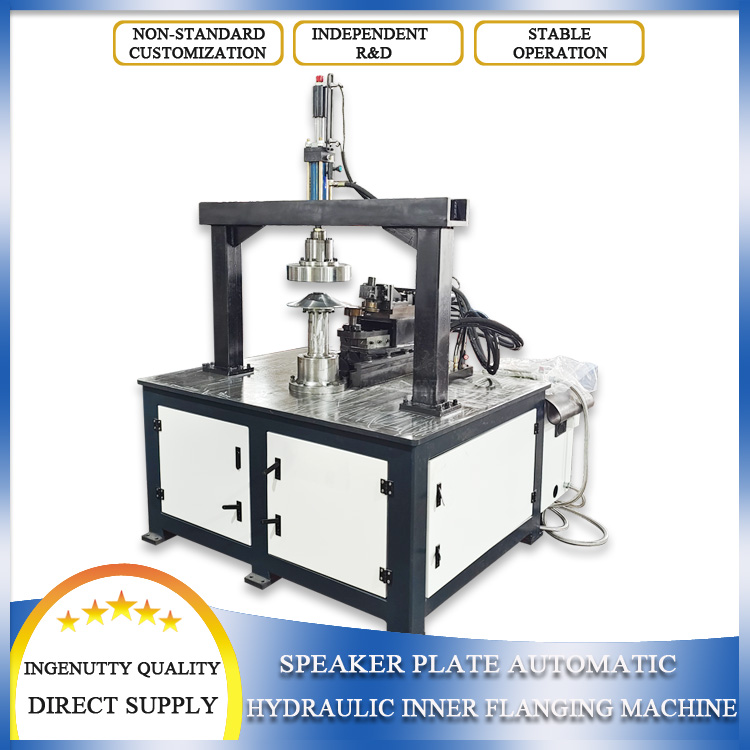

800-1 type stainless steel speaker plate automatic hydraulic inner flanging machine
Equipment description:
1. When the fan housing requires a perfect contour, when the pressure vessel sealing edge requires zero defects - the traditional sheet metal forming process is facing extreme challenges. Jiangmen Zhuosheng Machinery Co., Ltd.'s 800-1 intelligent flanging machine is born to end these pain points!
2. This is not an ordinary flanging machine, but a modular platform that integrates the functions of axial fan flanging machine, vibrating screen housing flanging machine, kitchenware flanging machine, pressure vessel flanging machine, and mining industry flanging machine. In the compact 1800mm body, the hydraulic system tames the 3mm thick stainless steel material with precise pressure, so that the flanging error of the duct flange is ≤1mm!
3. Through PLC intelligent control, one-button switching of application scenarios:
▶Axial fan flanging machine mode: 30 seconds to complete the inner flanging of Ø800mm speaker plate
▶Vibrating screen shell flanging machine mode: automatic compensation for 3mm steel plate rebound
▶Kitchenware flanging machine configuration: roll food-grade smooth flanging for stainless steel soup pots
▶Mining industry flanging machine solution: strengthen anti-wear rib pressing process
4. The flanging machine has a wide range of applicability, suitable for the inward flanging of the edge of the speaker plate, cylinder shrinkage, inner flanging and other forming, and can also be used for fan, vibrating screen, pressure vessel and other sheet metal forming. The equipment has fast flanging speed, stable flanging quality, and smooth flanging mouth; after flanging, it can be punched, folded, curled, etc., which can be customized according to customer requirements.
| Power type: | 380v three-phase four-wire (power type can be customized abroad) |
| Equipment power: | main motor 11kw oil pump motor: 3kw total power 14kw |
| Equipment size: | 1800x1000x1900 (length, width and height) mm |
| Equipment weight: | 1200kg |
| Control mode: | plc + touch screen |
| Drive mode: | hydraulic + electric |
| Processing cylinder length: | 600MM |
| Processing cylinder diameter: | 200-800mm |
| Processing material thickness: | iron 0-3MM stainless steel: 0-2MM aluminum 0-3MM |
| Features of the equipment Advantages: | high curling efficiency, smooth periphery after curling. |
| Production efficiency: | 30/second pieces |
| Operation mode: | manual/automatic (automatic can be started in one piece). |
| Equipment function: | Replacing different modules can complete: shrinking, rib pressing, curling inner and outer edges, inner flanging and other functions. |
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.
We are grateful for your support and trust along the way. We are honored by your cooperation every time, and we will live up to your trust and provide you with a more excellent experience.
We can also help you with all your equipment packaging needs. Whether you need split packaging, certified materials or general packaging advice, our team of experts can help you. We understand that every business is different, so we tailor our services to your needs. Our goal is to make your life easier by meeting all your packaging needs so that you can focus on running your business.
As a professional mechanical equipment manufacturer, our company is a private technology innovation enterprise integrating independent research and development, design and manufacturing, installation and commissioning, and training.
Our R&D team has 10 people, whose members cover multiple professional fields such as mechanical engineering, electronic information, and materials science, and have the ability to deal with different technical problems.
Our equipment is widely used in aerospace, energy, ventilation,hardware and furniture, tableware, medicine, electricity, packaging,construction,automobile and other industries and fields.
