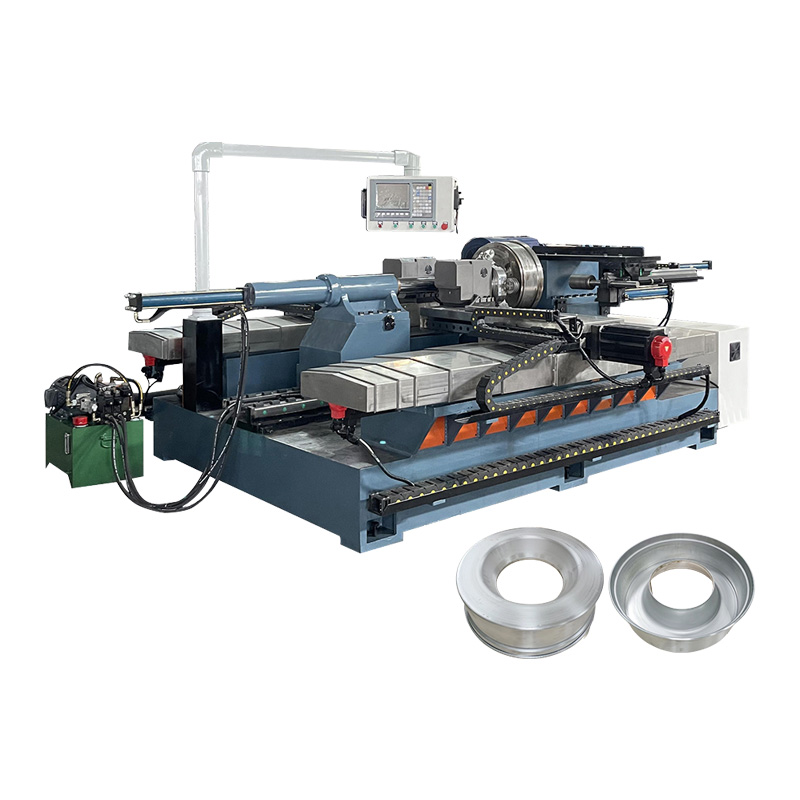

Single Wheel Metal Spinning Lathe is a professional machine tool mainly used for metal plastic forming. It fixes the round metal sheet (blank) on the rotating spindle and uses a single wheel spinning tool to apply pressure to the material, so that the material gradually deforms to fit the shape of the mold, and finally forms an axisymmetric hollow part. This process is between traditional turning and stamping, and occupies an important position in the field of metal processing.
1. Metal Flow Control Technology
In the processing of Single Wheel Metal Spinning Lathe, scientific regulation of metal flow is the core factor that determines product quality. The operator effectively guides the metal material to flow along the calculated path by precisely controlling the feed speed of the spinning wheel (usually 0.1-1.0mm/turn), the pressure (ranging from tens to hundreds of Newtons) and the contact angle (ranging from 20°-40°). It is worth mentioning that although the single-wheel system is not as productive as the multi-wheel equipment, it can achieve more complex asymmetric deformation due to the reduced interference in the metal flow path.
Different materials exhibit specific flow characteristics: aluminum alloys require medium pressure and rapid forming to prevent cracking; stainless steel requires multiple progressive pressures with intermediate annealing processes; soft metals such as pure copper need special attention to the rebound problem. Experienced technicians will adopt the "pass optimization" strategy - that is, planning the precise position of the spinning wheel in each rotation, gradually turning the flat blank into the final shape, which requires a perfect combination of computer-aided process planning (CAPP) and manual experience.
2. Mold and tooling system
Molds play a core role in the Single Wheel Metal Spinning Lathe process. Depending on the scale of production, wooden molds (for sample trial production), high-strength aluminum alloy molds (small and medium batches) or hardened steel molds (large-scale production) can be selected. The mold surface is often mirror polished (roughness Ra≤0.4μm), and some high-demand occasions will also be hard chrome plated to extend the service life.
Typical mold fixing methods include: hydraulic tensioning mandrel (suitable for thin-walled parts), flange locking (heavy-duty processing) and magnetic suction cup (special alloy processing). An often overlooked but crucial detail is the temperature control of the mold - continuous high-speed friction will cause the mold surface temperature to rise sharply. Modern equipment is equipped with a temperature measurement and cooling system, which monitors the mold temperature in real time through an infrared thermometer and automatically starts aerosol cooling when it exceeds the critical value (usually 120-150°C).
3. CNC and intelligent progress
Contemporary high-end Single Wheel Metal Spinning Lathe has achieved full CNC control (CNC control), equipped with: servo motor drive system (repeat positioning accuracy ±0.01mm), 3D laser scanning detection device (online dimension measurement) and adaptive control system. Among them, the process parameter self-optimization system based on artificial intelligence is particularly prominent - it can analyze the metal flow state in real time and automatically adjust the spinning wheel path and pressure parameters.
The latest technological breakthroughs include: automatic loading and unloading system guided by machine vision, virtual debugging technology based on digital twins, and intelligent management system that uses big data analysis to predict mold life. These innovations have increased the production efficiency of single-wheel spinning equipment by more than 40% and reduced the scrap rate to less than 2%.
1. Precision and surface quality advantages
Single Wheel Metal Spinning Lathe can achieve amazing forming accuracy due to the progressive forming method of a single contact point: the diameter tolerance is usually controlled within ±0.05mm, and the wall thickness deviation does not exceed 0.1mm. What is more outstanding is its excellent surface treatment ability - by reasonably selecting the radius of the spinning wheel surface (R5-R20mm range) and optimizing the tool path, the mirror effect (Ra 0.2-0.8μm) can be directly achieved, eliminating the subsequent polishing process.
Compared with the stamping process, the metal structure of spinning is more advantageous: the metal streamline is continuous and complete, and the grain refinement effect is obvious, which makes the mechanical properties of the product improve by more than 30%, especially suitable for parts that bear high cycle fatigue loads.
2. Material utilization and energy-saving characteristics
Today, when "green manufacturing" is increasingly valued, Single Wheel Metal Spinning Lathe shows unique environmental advantages: material utilization is usually more than 85% (stamping process is about 60-70%), and waste is basically recycled in the form of complete rings; energy consumption is only 1/3-1/5 of the same output stamping equipment; and no lubricant is required (dry spinning), reducing environmental pollution.
Typical comparison case: To produce stainless steel tableware with a diameter of 300mm, the stamping process requires pre-cutting of square blanks, with a material utilization rate of only 65%, while spinning directly uses round blanks, and waste can be fully recycled, saving more than 25% of the overall cost.
3. Flexible production capacity
The unique value of the single wheel system lies in its unparalleled flexibility: changing products only requires changing the mold and adjusting the program, and switching from one product to another is usually completed within 30 minutes (about 2-4 hours for large parts). This makes it an ideal choice for multi-variety, small-batch production, especially for industries with strong customization needs.
A little-known fact is that skilled technicians can create unique crafts on Single Wheel Metal Spinning Lathe through "free spinning" technology (not relying on molds, relying entirely on feel), which is extremely valuable in the field of high-end customization.
1. Aerospace
In military and aerospace applications, Single Wheel Metal Spinning Lathe plays an irreplaceable role: manufacturing rocket engine nozzles (thickness gradient structure), missile fairings (ultra-thin high-precision parts) and aircraft hydraulic system tanks (seamless structure). A certain type of spacecraft fuel tank is formed by spinning 2219 aluminum alloy, with a wall thickness controlled at 1.5±0.05mm, and the overall weight is 20% lighter than the traditional welded structure.
The processing technology of special materials is particularly critical: titanium alloy spinning must be carried out under a protective atmosphere (anti-oxidation); molybdenum alloy processing must be preheated to 300-400°C (to improve plasticity). These special needs just highlight the flexible and adjustable process advantages of single-wheel equipment.
2. Life and decoration field
Single Wheel Metal Spinning Lathe is widely used in the high-end kitchenware industry to produce: handmade copper pots (5mm thick copper one-piece molding), stainless steel coffee pots (mirror inner wall) and cast iron enamel pots (precisely controlled wall thickness distribution). A German luxury brand frying pan has achieved the optimal thickness transition between the bottom and the side wall through 16 precision spinning processes (5mm at the bottom gradually changes to 1.2mm at the side edge), creating excellent heat conduction performance.
In the field of decorative arts, metal lamps, sculptures and architectural components formed by spinning show unique charm. The 3.2-meter-diameter aluminum art chandelier in the lobby of a hotel in Dubai was formed by 16 incremental forming processes using a super-large single-wheel spinning device, without any splicing welds on the surface.
3. New energy and automotive fields
Single Wheel Metal Spinning Lathe shows special value in the production of new energy vehicle battery shells (explosion-proof design) and fuel cell bipolar plates (precision flow channels). After the aluminum alloy battery tray of a certain model of electric vehicles adopts the spinning process:
The flatness of the sealing surface is improved to 0.1mm/m² (the original welding structure is 0.5mm/m²)
The production cycle is shortened from 22 hours to 4.5 hours
The overall cost is reduced by 35%
The tapered pipe fittings of automobile mufflers are another classic application. The gradient wall thickness design of spinning (1.2-2.0mm continuous change) extends the product life by more than 3 times.
Maintenance of the spindle system
The spindle is the core component of the Single Wheel Metal Spinning Lathe, and its operating status directly affects the processing accuracy and equipment life. Daily inspections should pay attention to the spindle temperature rise (usually should not exceed 60°C) and abnormal noise. If there is abnormal vibration or noise, it is necessary to promptly check the bearing wear or poor lubrication. Weekly maintenance requires the addition of high-speed spindle grease (ISO VG68 grade is recommended) to keep the grease clean. Monthly maintenance should include the detection of spindle axial and radial clearance (standard value is usually ≤0.02mm) to prevent the expansion of processing errors due to wear.
Hydraulic system management
The hydraulic system provides stable pressure for the spinning wheel, and its operating status needs to be strictly monitored. Check and record the hydraulic pressure gauge reading daily (the working pressure is usually in the range of 8-20MPa) to ensure that there is no leakage in the system. The oil suction filter should be cleaned or replaced (filtration accuracy ≤10μm) during weekly maintenance to avoid oil contamination and valve block jamming. The hydraulic oil contamination level should be tested for monthly maintenance (NAS 1638 standard recommends control below level 8), and the water content should be sampled and tested (oil change is required if it exceeds 0.1%). It should be noted that the oil should be preheated (≥15°C) before starting the equipment in a cold environment to avoid a sudden increase in viscosity and cause the pump body to suck empty.
Guide and transmission system maintenance
It is critical to maintain the accuracy of linear guides and ball screws. The guide surface should be cleaned with anhydrous alcohol before daily operation to remove metal debris and dust. Reapply the guide rail special lithium-based grease (NLGI grade 2) during weekly maintenance to ensure smooth movement of the slider. The screw backlash should be checked for monthly maintenance (allowable value ≤ 0.03mm), and the preload should be adjusted if necessary. Special reminder: In a humid environment, the guide rail and screw need to be coated with an additional anti-rust oil film to prevent corrosion.
Electrical system inspection
Modern Single Wheel Metal Spinning Lathe generally adopts CNC system, and electrical stability directly affects the reliability of the equipment. Before starting the machine every day, the emergency stop button function needs to be tested to confirm that all safety protection devices are effective. During weekly maintenance, the wiring terminals in the electric control cabinet should be tightened to check for hidden dangers of circuit aging or loosening. It is recommended to use a megohmmeter to test the insulation resistance of the servo motor (should be ≥ 5MΩ) and clean the encoder heat dissipation holes for monthly maintenance. In the hot summer season, the operating status of the inverter cooling fan should also be checked.
Maintenance of spinning tools
The wear condition of the spinning roller directly affects the surface quality of the product. The surface roughness of the spinning wheel should be measured after daily operation (Ra≤0.8μm is normal) to check for chipping or cracks. The spinning wheel bearing needs to be disassembled for weekly maintenance to clean and add grease (high temperature resistant model). During monthly maintenance, a dial indicator should be used to check the radial runout of the roller (if it exceeds 0.01mm, the bearing needs to be replaced). Important note: When processing different materials, special rollers should be used - hard alloy rollers (HRC ≥ 90) for aluminum alloys, and polycrystalline cubic boron nitride (PCBN) coated rollers are recommended for stainless steel.
