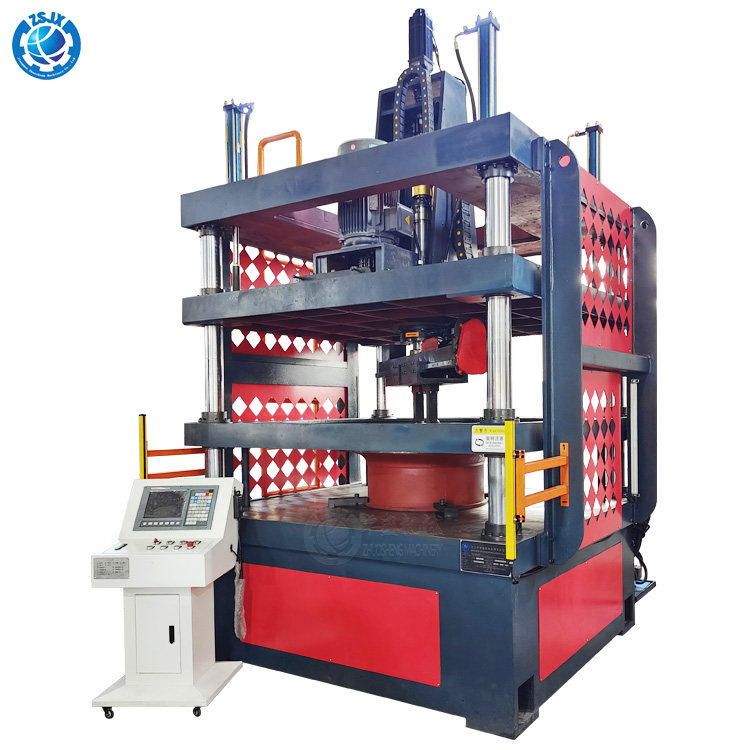

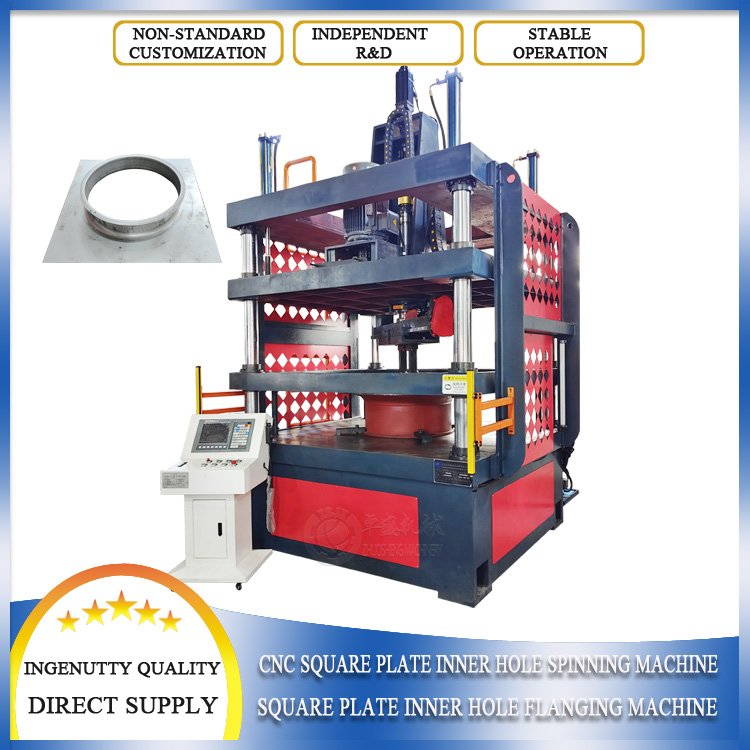

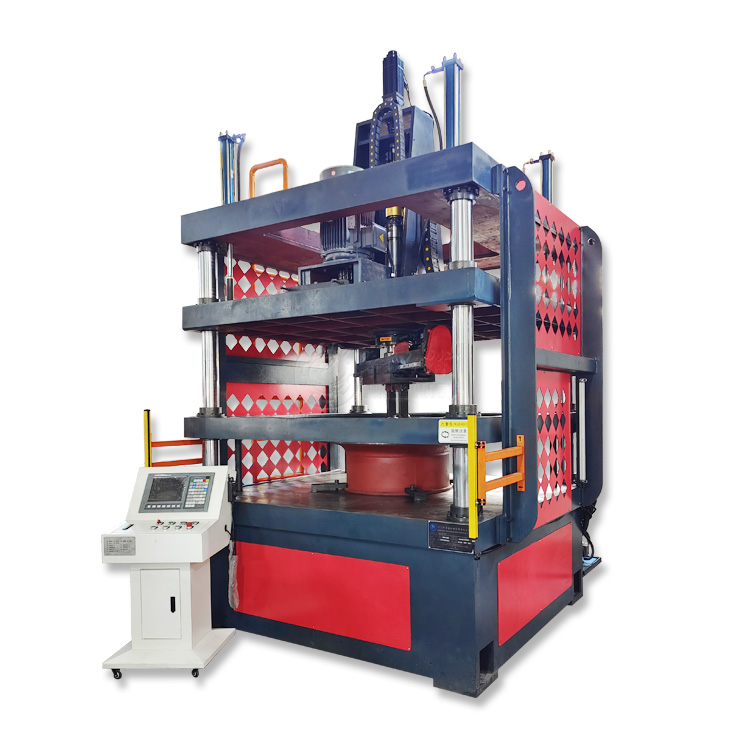

16 Years of Craftsmanship & Intelligent Manufacturing: CNC Square Plate Internal Hole Spinning and Flanging Machine - Produced by Jiangmen Zhuosheng Machinery - A Leading Factory in China
As a leading manufacturer of spinning and flanging machines in China, Jiangmen Zhuosheng Machinery Co., Ltd. has been deeply involved in the industry for 16 years, possessing a complete system for R&D, production, installation, sales, and service.
This CNC square plate internal hole spinning and flanging machine is an ideal choice for enterprises that need to spin and flange metal plates for various large and medium-sized air conditioning panels, ventilation industry, chemical equipment, power facilities, large steel formwork, water turbines, pressure vessels, and centrifuges, achieving high-quality, efficient, and standardized production.
The equipment adopts the DENSE (GUGO) CNC system, supports manual/automatic dual modes, and features high efficiency, stability, and high precision. It can process iron plates up to 2.5mm thick and stainless steel plates up to 1.2mm thick, with a minimum workpiece size of 200×200mm and a maximum of 1800×1800mm. The maximum workpiece height can be extended to 320mm.
The core components of the equipment all use internationally and domestically renowned brands such as NSK bearings, Chint Electric, HIWIN guide rails, and CR12 spinning wheels to ensure long-term stable operation. We also provide a complete set of programming input, operation training videos, and software support, truly offering a "turnkey" service.
Whether you require standardized production or customized processing, Zhuosheng Machinery can provide you with the ideal solution. Choosing Zhuosheng Machinery means choosing professionalism.
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.
| Power supply type: | AC 380V three-phase four-wire system (customizable for overseas markets) |
| Total power: | Approximately 18kW, main motor 15kW. 1. Oil pump motor: 3kw |
| Spindle speed: | 10-300rpm |
| Equipment weight: | 5.8 tons |
| Equipment dimensions: | 2200x2200x3200 (L, W, H) |

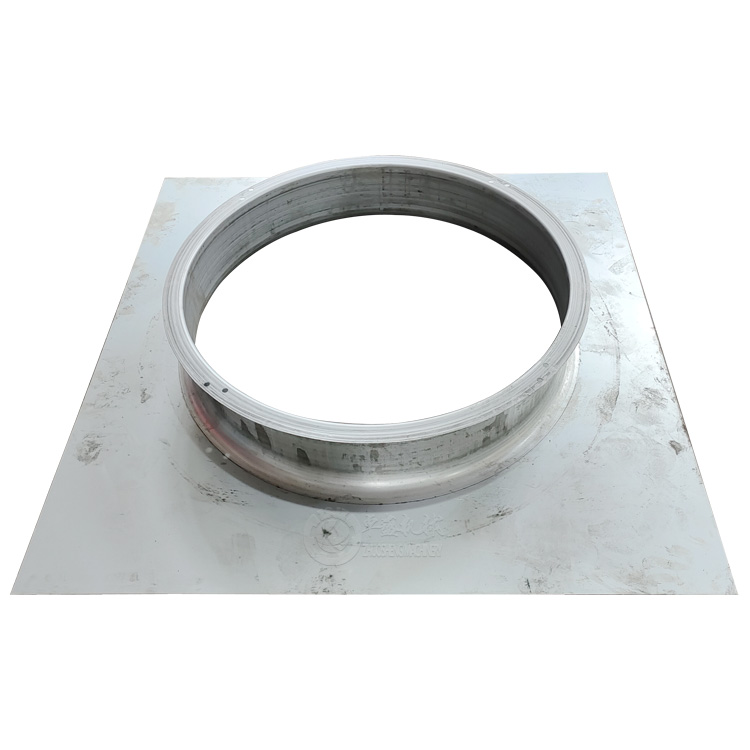

| Equipment function: | Spinning and flanging of square plates with round holes |
| Production efficiency: | 100-300/shift |
| Drive method: | Hydraulic |
| Hydraulic pressure: | 3-12MPa |
| Control method: | CNC (DINS or GOOG system) |
| Operation mode: | Manual/Automatic |
| Maximum spun square plate size: | 1800*1800mm |
| Minimum spun square plate size: | 200*200mm |
| Plate thickness: | Within 2.5mm (Stainless steel thickness within 1.2mm, workpieces with a height of less than 50mm can be processed) (Materials other than stainless steel are recommended, such as galvanized plate, aluminum plate, carbon steel plate, etc.) |
| Workpiece height: | 200mm Within (the equipment is designed to process workpieces with a diameter of 1250mm and a height of 320mm) |
We are grateful for your support and trust along the way. We are honored by your cooperation every time, and we will live up to your trust and provide you with a more excellent experience.
We can also help you with all your equipment packaging needs. Whether you need split packaging, certified materials or general packaging advice, our team of experts can help you. We understand that every business is different, so we tailor our services to your needs. Our goal is to make your life easier by meeting all your packaging needs so that you can focus on running your business.
As a professional mechanical equipment manufacturer, our company is a private technology innovation enterprise integrating independent research and development, design and manufacturing, installation and commissioning, and training.
Our R&D team has 10 people, whose members cover multiple professional fields such as mechanical engineering, electronic information, and materials science, and have the ability to deal with different technical problems.
Our equipment is widely used in aerospace, energy, ventilation,hardware and furniture, tableware, medicine, electricity, packaging,construction,automobile and other industries and fields.
Q: When shipping, what kind of packing?
A: We use standard export packing.
Q: What are your delivery terms?
A: EXW, FOB, CFR, CIF.
Q: What's your delivery time?
A: Generally speaking, it takes 30 to 60 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q: Can you make it as required?
A: Yes, we can produce according to your samples or technical drawings. We can make molds and fixtures.
Q: Do you have professional engineers?
A: Yes.we have professional engineers and designers.
Q: Can you provide customzied machines?
A:Yes, we can design and manufacture according to your specific requirements.
